Led Walls
Excel Security Systems Premier LED Video Wall Installation for Commercial & Retail Spaces
Transform Your Space with High-Performance LED Video Walls
At Excel Security Systems, we specialize in cutting-edge LED video wall installations designed to enhance your business, retail space, or commercial environment. Whether you need an eye-catching digital display, an interactive experience, or a large-scale advertising solution, our state-of-the-art LED video walls deliver unmatched visual impact and clarity.
With over 25 years of expertise in the industry, we provide customized, high-quality LED wall solutions tailored to fit your unique needs, from retail storefronts and corporate boardrooms to stadiums, restaurants, and entertainment venues.
Why Choose Our LED Video Wall Solutions?
-
![]()
INDOOR LED Panel P1.53mm
Pixel Pitch: 1.53
Size: 640 x 480 x 75 mm / 25.2" x 18.9" x 3"
Viewing distance: 3 ft (0.9 m)
High refresh rate: 3840hz
Weight: 21lbs / 9.6 kg
Operation power: 100~240V 50-60Hz
Max consumption: 200W/per panel
Avg consumption: 120W/per panel
-
![]()

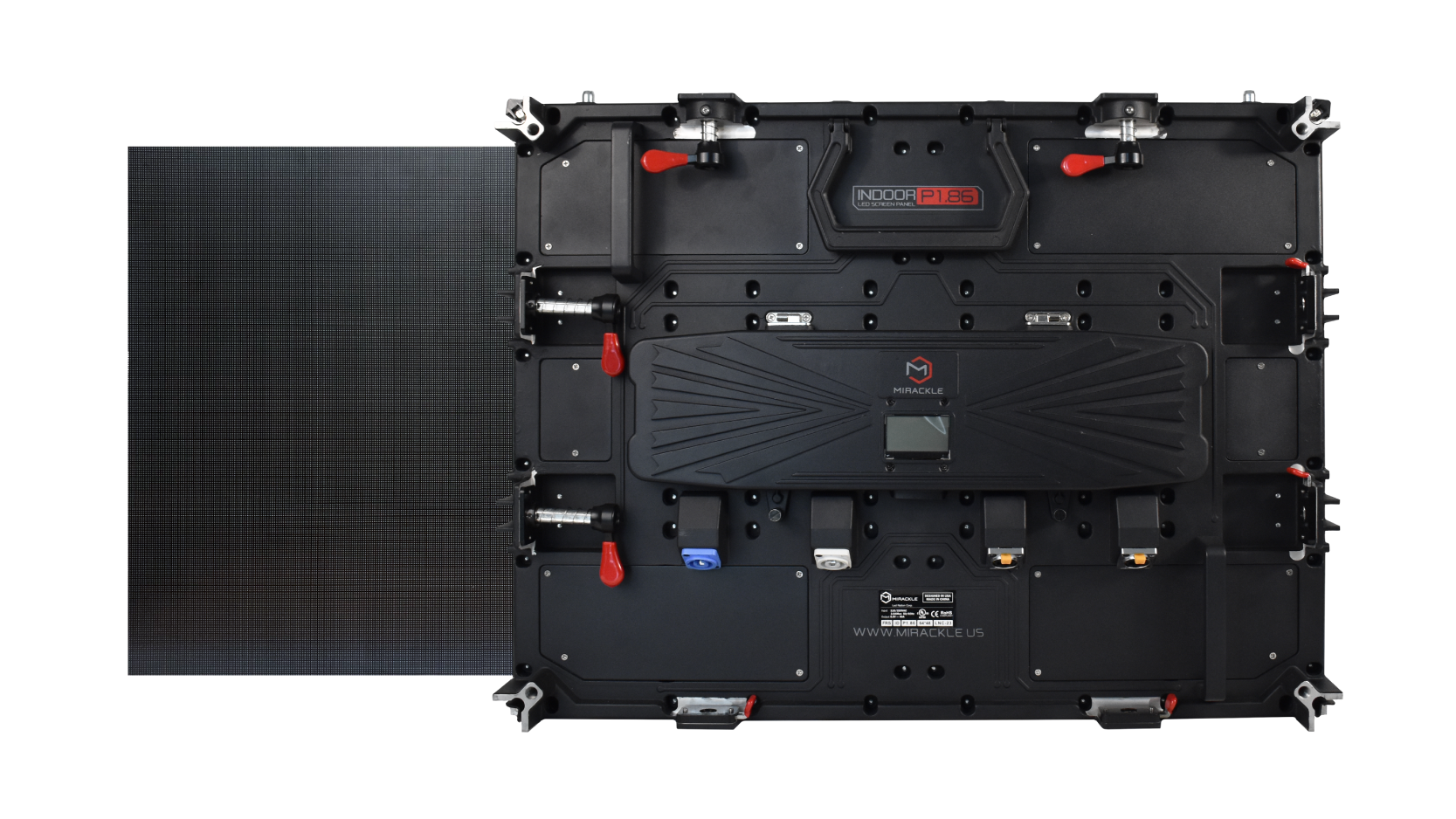

INDOOR LED Panel P1.86mm
Pixel Pitch: P1.86mm
Size: 640 x 480 x 75 mm / 25.2" x 18.9" x 3"
Viewing distance: 4 ft (1.2 m)
High refresh rate: 3840 Hz.
Weight: 21,6lbs (9,8Kg)
Operation power: 100~240V / 50-60Hz
Max consumption: 200w
Avg consumption: 120W per panel
-
![]()
INDOOR LED Panel P2.5mm
Pixel Pitch: 2.5mm
Size: 500 x 500 x 82.5 mm / 19.7" x 19.7" x 3.25"
Viewing distance: 6 ft (1.8m)
High refresh rate: 3840 Hz.
Weight: 16lbs (8kg)
Operation power: 100~240V / 50-60Hz
Max consumption: 150W per panel
Avg consumption: 120W per panelDescription goes here
-
![]()
INDOOR LED Panel P3.91mm
Pixel Pitch: 3.91mm
Size: 500 x 500 x 82.5 mm / 19.7" x 19.7" x 3.25"
Viewing distance: 15 ft (4.5 m)
High refresh rate: 3840 Hz.
Weight: 16lbs (8kg)
Operation power: 100~240V / 50-60Hz
Max consumption: 120W per panel
Avg consumption: 60W per panel
How to Choose the Best LED Wall Size for Your Project
Selecting the right LED video wall size requires careful consideration of viewing distance, resolution, content type, and installation environment. The goal is to create an immersive visual experience that is crisp, clear, and suited to the space.
1. Viewing Distance and Pixel Pitch
The size of an LED wall should be determined by how far viewers will be from the screen. The pixel pitch, which measures the distance between individual LEDs, plays a crucial role in display clarity.
Close Viewing (Retail, Conference Rooms, Control Centers) – A lower pixel pitch (1.2mm - 2.5mm) ensures high resolution for sharp details.
Mid-Range Viewing (Lobbies, Corporate Displays, Auditoriums) – A moderate pixel pitch (2.6mm - 4.0mm) provides excellent visibility.
Long-Distance Viewing (Stadiums, Outdoor Billboards, Large Venues) – A higher pixel pitch (4.0mm - 10mm+) is suitable for massive displays where viewers are far away.
2. Space and Installation Area
The available wall space will define the maximum size your LED video wall can be. Consider aspect ratio to ensure your content scales correctly. Common sizes include:
16:9 Ratio – Ideal for presentations, digital signage, and video content.
32:9 Ultra-Wide – Best for immersive visuals in retail and entertainment spaces.
Custom Configurations – Can be designed as curved, column wraps, or seamless multi-panel displays.
3. Content Type and Usage
Different projects require different LED wall sizes:
Corporate & Boardrooms – Medium-sized LED walls (110-165 inches) for video conferencing and presentations.
Retail & Advertising – Large LED walls (200+ inches) for maximum customer engagement.
Entertainment & Stadiums – Oversized LED displays (300+ inches) for crowd visibility.
4. Indoor vs. Outdoor Considerations
Outdoor LED walls require higher brightness levels (5,000-10,000 nits) to be visible in daylight, while indoor LED walls typically range from 500-1,500 nits. Ensure IP-rated weatherproofing for outdoor applications.
Final Considerations
Choosing the best LED wall size means balancing resolution, space, brightness, and content requirements to ensure a seamless display experience. Whether you need a high-definition indoor screen for a conference room or a massive digital billboard for advertising, selecting the right size ensures optimal clarity and impact for your project.
Indoor and Outdoor Installations – Designed for any environment, our LED walls perform flawlessly in high-traffic areas, outdoor facades, and bright-lit spaces.
Customizable Configurations – From standard panels to curved, seamless, or transparent displays, we create visually stunning designs for any application.
Ultra-High-Resolution Displays – Enjoy crystal-clear video, dynamic animations, and vibrant imagery with advanced pixel pitch technology that enhances visibility from any distance.
Touch-Interactive Technology – Upgrade customer engagement with multi-touch LED panels, perfect for retail, education, and experiential marketing.
Seamless Multi-View Displays – Showcase one large video or multiple synchronized images for maximum impact.
Fast and Reliable Installation – Unlike other providers who take months, we get your custom LED video wall installed in as little as 30 days.
Remote Monitoring and Easy Integration – Manage content effortlessly with cloud-based controls and seamless AV system integration for corporate, retail, and event spaces.
How Much Does an LED Video Wall Cost?
The price of an LED video wall depends on several factors, including
Pixel Density and Resolution – Higher resolutions create sharper images but may increase costs.
Display Size and Shape – Whether you need a flat, curved, or transparent LED panel, we customize it to your space.
Installation Complexity – From simple wall mounts to complex freestanding structures, we provide expert setups.
Indoor vs. Outdoor Application Weatherproofing and brightness levels are tailored for optimal performance.
Expert Consultation and Installation
At Excel Security Systems, we guide you every step of the way:
Consultation and Design Planning – We analyze your needs and recommend the best LED solutions.
Expert Installation – Our team ensures a seamless, high-quality installation for long-lasting performance.
Ongoing Support and Maintenance – Enjoy reliable service and updates for years to come.
Get Started Today
Call 718-644-2811 for a Free Quote
Transform your space with a high-impact LED video wall. Contact our experts today to discuss your project and get a customized installation plan that fits your budget and timeline.
